Double Sided Plastic Cup UV Digital Printing Machine | Caspijet CJ-T2UV Pro

Caspijet CJ-T2UV Pro

Double Sided Plastic Cup UV Digital Printer

Zero Plates · One Pass · Two Sides Printing


  • Double sided printing – Both sides in one pass. No flipping required.

  • 30-40 cups/min – High-speed production for plastic, paper, metal cups

  • White + CMYK – Vibrant colors on transparent or dark surfaces

  • 54 / 75mm print height – Toshiba or Konica Minolta printhead options

  • Plasma treatment + Internal circulation – Superior adhesion, zero clogging

  • No plates · No MOQ – Print 1 cup or 100,000 with instant changeover



Chat on WhatsApp – Get Quote

Request a sample test or live demo






Caspijet CJ-T2UV Pro | Double Sided Plastic Cup UV Digital Printer


Double Sided Printing • One Pass
High Speed Plastic Cup Printer
Two Sides • Zero Plates
White+CMYK Single Pass

Caspijet CJ-T2UV Pro
Double Sided Plastic Cup UV Digital Printer

Zero Plates, One Pass, Two Sides Printing

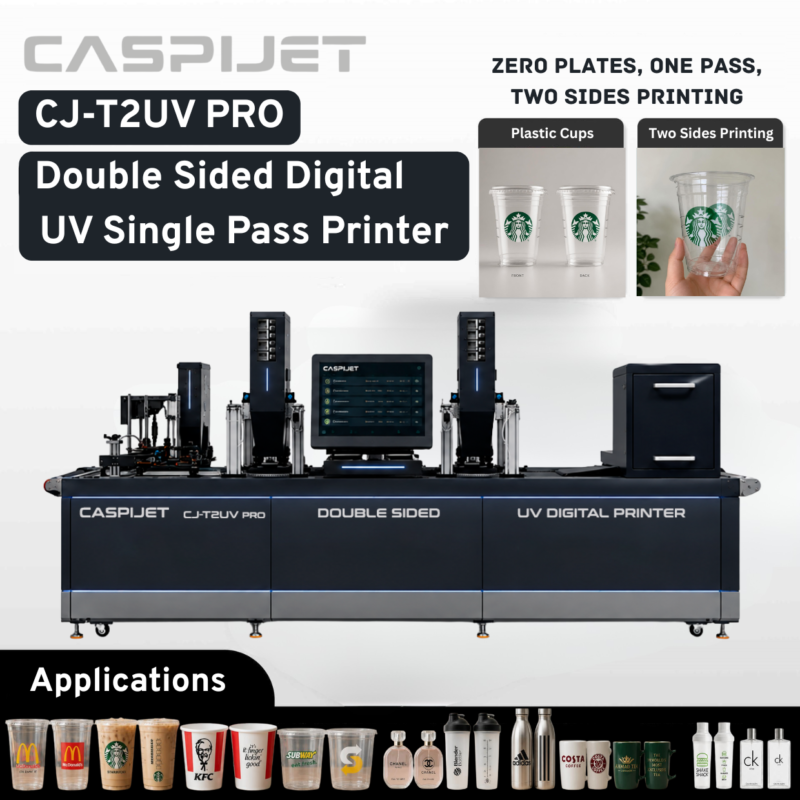

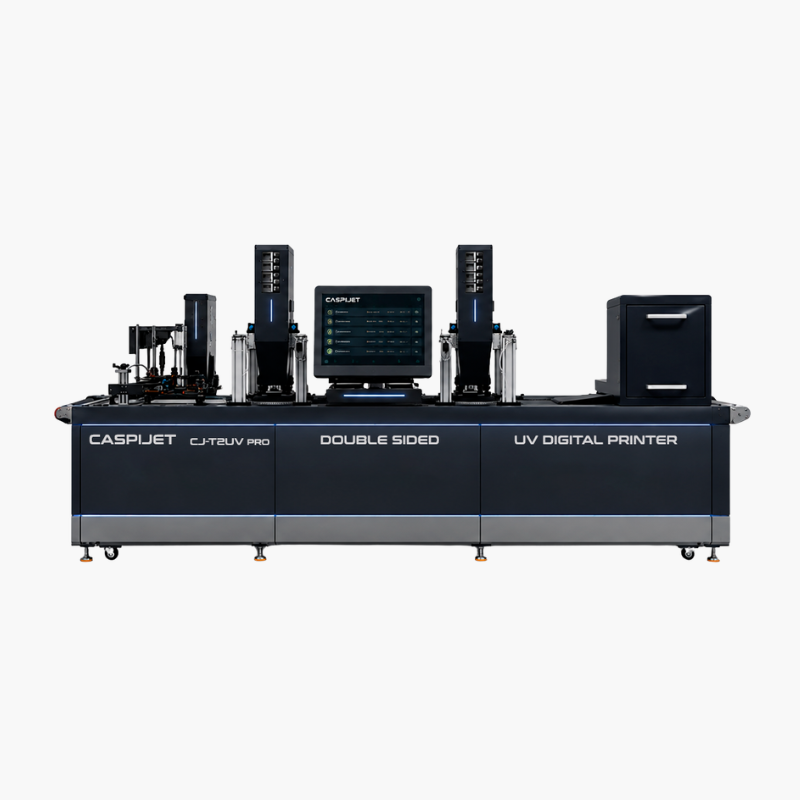

The Caspijet CJ-T2UV Pro is a high‑speed double sided UV digital printer designed specifically for printing on both sides of plastic cups in a single pass. Unlike conventional printers, it eliminates the need for plates and enables simultaneous printing on the exterior and interior (or opposite sides) of cups, bottles, and containers — dramatically reducing production time and cost.

Ideal for plastic cups, paper cups, metal cups, glass bottles, food containers, buckets, and more, the CJ-T2UV Pro delivers vibrant, durable prints with food‑safe, UV‑curable inks. With a rotary feeding system and automatic stacking, it achieves industrial throughput without compromising quality.

30-40 cups/min White+CMYK in one pass Double sided printing

Technical Specifications

Printer & Performance
Printer Model
Caspijet CJ-T2UV Pro Double Sided UV Digital Printer
Print Mode
Single Pass – Both Sides Simultaneously
Print Speed
0-30 meters/min · Up to 30-40 cups per minute
Printhead Technology
Piezoelectric (Toshiba / Konica Minolta)
Printhead Options
Toshiba (print height 54mm) / Konica Minolta (print height 75mm)
Resolution
600 dpi
Colors
CMYK / White + CMYK
Ink Type
UV Ink (food‑safe, low‑VOC)

Printing Dimensions & Features
Print Height (Toshiba)
54 mm
Print Height (Konica Minolta)
75 mm
Ink Drop Height
Up to 15mm (curved/uneven surfaces)
Side Printing
Both exterior and interior (or opposite sides)
Ink Supply System
Negative Pressure Ink Supply System
Cleaning
Auto cleaning function
Anti-Clogging
Internal Ink Recirculation System

Compatible Materials & Products
Materials
Plastic, Paper, Metal, Glass, Ceramic
Product Shapes
Cups, Bottles, Food Containers, Buckets, Tumblers
Feeding System
Manual or Customized Automatic Feeder
Receiving System
Manual or Auto Stacker

Operational & Software
Temperature
10℃ ~ 35℃ (50ºF ~ 95ºF)
Humidity
20% – 80%
Voltage / Power
220V/AC, 50/60Hz, 8KW
Operating Noise
60-70 db(A)
Operating System
Windows 10 / Windows 11
Data Interface
Ethernet · USB 3.0
Software
Caspijet Printing Software on All-in-One Computer
File Formats
PDF / TIFF / JPG

🥤 Plastic Cups
☕ Paper Cups
🥛 Metal Cups
🍶 Glass Cups
🧴 Plastic Bottles
🍲 Food Containers
🪣 Buckets
🥤 Tumblers
🧃 PET Cups
🧴 Perfume Bottles
☕ Espresso Cups
🧴 Cosmetic Jars
🥫 Cans
🧢 Lids & Caps

What Makes the CJ-T2UV Pro Different

Double Sided Printing in One Pass

Prints both sides of cups, bottles, or containers simultaneously – no need for flipping or second pass. Doubles productivity.

15mm Ultra High Ink Drop

Prints flawlessly on curved, ribbed, and textured surfaces – ideal for 3D-shaped objects.

White + CMYK Single Pass

Opaque white base and full colour in one pass – perfect for transparent or dark materials.

Plasma Treatment Integrated

Built‑in surface pre‑treatment ensures superior ink adhesion on plastics, metals, and glass.

Negative Pressure + Internal Circulation

Zero nozzle clogging, consistent ink flow – reliable high‑speed production round the clock.

30-40 Cups/Minute Production Speed

Industrial throughput with no plates, no tooling – from 1 to 100,000 units with instant changeover.

Why Choose Shenzhen Caspijet Technology Co., Ltd.

Your trusted partner for digital printing innovation

Profit‑Boosting Innovation

One machine, multiple applications. Low ink consumption & automated handling. Rapid ROI and higher margins.

Seamless Global Support

Multilingual pre‑/after‑sales: English, Spanish, Italian, Russian, Turkish, Bengali & more. Fast consumables delivery.

Future‑Ready Solutions

All‑in‑one computer, smart software integrations, low energy + eco‑friendly UV ink options.

Partnership, Not Just Printers

Joint market development, training, co‑marketing support. We grow with you.

Tailored Production Lines

We engineer printers to match your exact substrate, speed, and floor layout — no one‑size‑fits‑all.

Lowest TCO • Rapid ROI

Reduced ink waste, energy-efficient drying, and durable parts cut total cost of ownership.

Rich Experience

Digital printing machines & customized solutions. High quality assurance.

Strict Quality Control

Over 20 final inspections before shipment + rigorous in‑process checks.

1V1 Online After‑Sales

Dedicated technician assigned for fast issue resolution & guidance.

On‑site Technical Support

If needed, on‑site training & support to ensure maximum uptime.

End‑to‑End Integration

From workflow consultancy to post‑installation optimization — we stay with you.

Eco‑Friendly

Our UV inks are environmentally responsible and low-VOC.

Ready to print on both sides of your cups?

Request a sample test, get a quote, or schedule a live demo with our engineers.

Contact Sales on WhatsApp →

📩 Or DM us for a sample print or technical consultation
