High Speed Cup Printer
Top & Side Printing Options
White+CMYK Single Pass

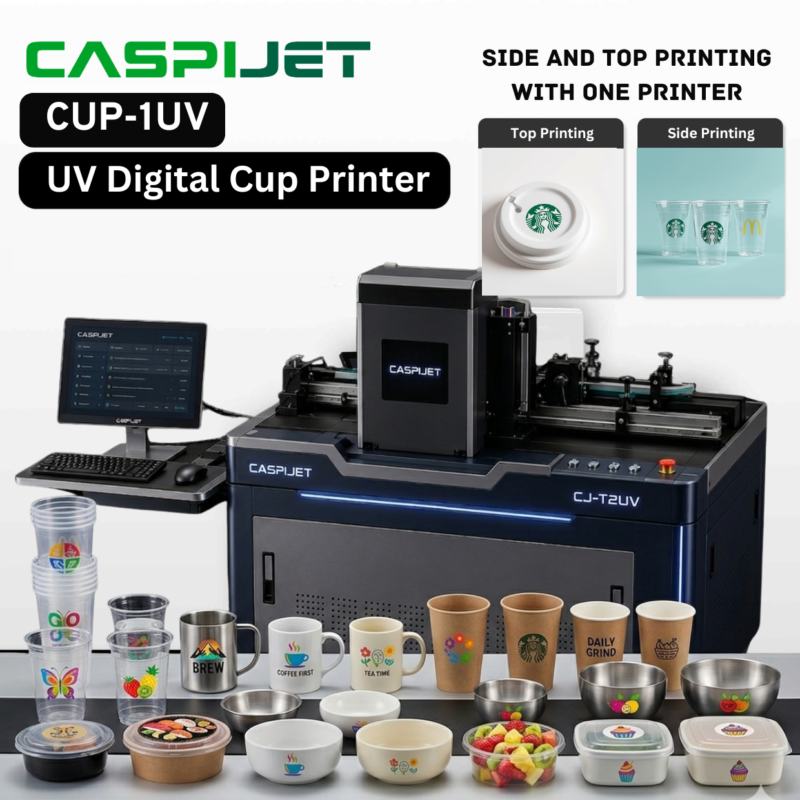

Caspijet CUP-1UV
Single Side UV Digital Cup Printer
The Caspijet CUP-1UV is a high‑speed single side UV digital printer designed for printing on cups and cylindrical containers. It features a rotatable printhead that enables both side printing (on cylindrical walls) and top printing (on rims, lids, and edges) – all on the same machine. Unlike conventional printing, it requires no plates or screens, allowing rapid changeovers and reduced setup time.
Suitable for plastic cups, paper cups, metal containers, glass bottles, square boxes, food containers, buckets, and more, the CUP-1UV uses UV‑curable inks with low-VOC options. With a rotary feeding system and automatic stacking, it supports continuous production at industrial speeds.
30-40 cups/min • White+CMYK in one pass • Top & side printing
Technical Specifications
Applications
The Caspijet CUP-1UV is configurable for a wide range of cylindrical, flat, and shaped products. Below are common applications:
Plastic Cup & Container Printing
Digital printing for PET, PP, and other plastic cups, as well as square and rectangular plastic containers. Suitable for side and top printing on rims and lids.
Paper Cup & Box Printing
Direct digital printing on paper cups, including espresso cups and coffee cups. Also suitable for flat paperboard boxes and folded cartons with top and side printing capabilities.
Glass, Metal & Flat Surfaces
Suitable for glass beer mugs, metal tumblers, and flat metal sheets or panels. UV inks provide durable, scratch-resistant finishes.
Bottles, Jars & Square Containers
Printing on plastic bottles, perfume bottles, cosmetic jars, food containers, and rectangular buckets. The top/side printing options allow for printing on front, back, rims, and edges.
Special Shapes & Custom Items
Includes printed cans, lids, caps, and specialty items. The machine can be customized with suitable jigs and feeding systems for your specific product dimensions and shapes.
Key Capabilities
Rotatable Printhead Design
Enables both side and top printing on cups and containers – one machine, multiple printing angles.
15mm Ultra High Ink Drop
Accommodates curved, ribbed, and textured surfaces – suitable for 3D-shaped objects with uneven profiles.
White + CMYK Single Pass
Opaque white and full colour applied in one pass, enabling printing on transparent or dark substrates.
Plasma Treatment Integrated
Built‑in surface pre‑treatment to improve ink adhesion on plastics, metals, and glass substrates.
Negative Pressure + Internal Circulation
Ink supply system with recirculation helps maintain consistent flow and reduces the risk of nozzle blockage during extended production runs.
30-40 Cups/Minute Production Speed
Capable of industrial throughput, with no plates or tooling required – supporting short to medium runs with quick job changes.
Frequently Asked Questions
Can the Caspijet CUP-1UV print both top and side of a cup?
Yes. The rotatable printhead allows you to switch between side printing (cylindrical walls) and top printing (rims, lids, edges) on the same machine.
What shapes can the machine print on?
It supports cylindrical, square, rectangular, and flat surfaces, making it suitable for cups, bottles, boxes, and more.
How many cups per minute can the CUP-1UV print?
Depending on product dimensions, print configuration, and artwork, production speed can reach approximately 30–40 cups per minute.
What materials can the machine print on?
The system can be configured for suitable plastic, paper, metal, glass, and ceramic products. Actual ink adhesion should be tested on the customer’s specific substrate before production.
Does the machine require printing plates?
No. It is a digital printing system and does not require conventional printing plates or screens.
Can it print white ink?
Yes. The machine can be configured with White + CMYK printing for opaque highlights on dark or transparent materials.
What is the maximum print height?
The available print height depends on the printhead configuration: approximately 54 mm with Toshiba printheads or 75 mm with Konica Minolta printheads.
Why Choose Shenzhen Caspijet Technology Co., Ltd.
Manufacturing Capability
In-house engineering and production of single-pass digital printers, with custom configurations available.
Global Technical Support
Multilingual support team with remote assistance and on-site service options.
Customized Solutions
Printers tailored to your specific substrate, print width, speed, and production layout.
Quality Control
Rigorous in‑process inspections and over 20 final checks before shipment.
Installation & Training
On‑site installation, operator training, and ongoing technical guidance.
After‑Sales Support
Dedicated technician assigned to each client, with spare parts and consumables available.
Ready to print on your cups or containers?
Request a sample test, get a quote, or schedule a live demo with our engineers.
